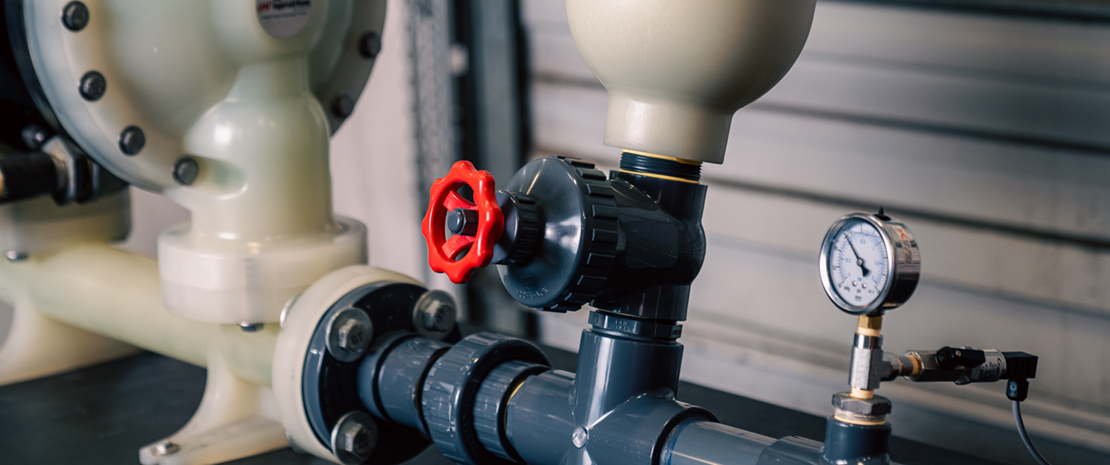

When it comes to maintaining the efficiency and longevity of a pumping system, one often overlooked component is the inlet stabilizer, sometimes called a suction stabilizer. This simple yet crucial device plays a vital role in ensuring consistent suction pressure, preventing damage, and optimizing overall system performance. But what exactly is an inlet stabilizer, and why is it so important?
What is an Inlet (Suction) Stabilizer?
An inlet stabilizer is a device designed to maintain a consistent and stable suction pressure in a system, such as a pump or pipeline. Its primary function is to stabilize pressure and fluid flow on the suction side of the pump, ensuring that it remains within a safe and optimal operating range. This is crucial for preventing a number of issues that can arise due to fluctuating or transient low suction pressure.
The Dangers of Cavitation
One of the most significant risks associated with low suction pressure is cavitation. Cavitation occurs when the pressure in a liquid drops below its vapor pressure, causing vapor bubbles to form. As these bubbles move through the system and enter an area of higher pressure, they collapse violently, producing shockwaves that can cause significant damage to the pump and other equipment. By maintaining a stable suction pressure, a suction stabilizer helps prevent the formation of these destructive vapor bubbles, protecting the system from the damaging effects of cavitation.

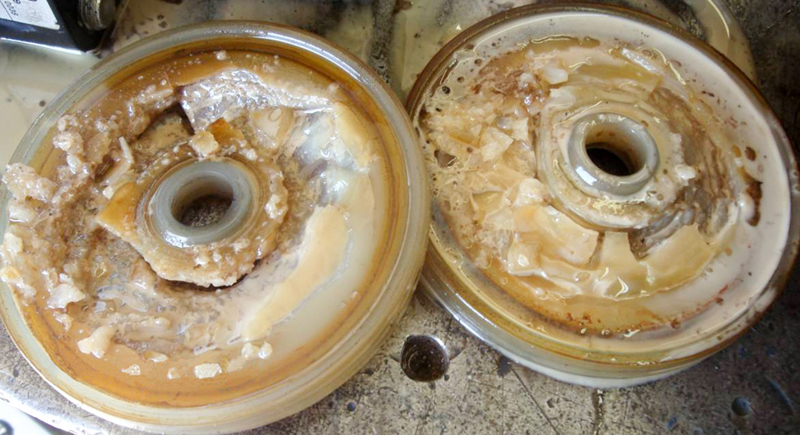

Ruptured diaphragms from AODD pump due to cavitation. Image courtesy of Qspray.com
Improving Pump Efficiency
An inlet stabilizer does more than just prevent cavitation – it's also crucial for optimizing pump efficiency. In a reciprocating pump, the liquid in the suction line is constantly being accelerated and decelerated with each stroke, creating an "acceleration head loss." This repeated starting and stopping demands extra energy, forcing the pump to work harder and consume more power while delivering less. The inlet stabilizer solves this by maintaining steady suction pressure and flow. With these consistent conditions, the pump can run at peak performance, minimizing energy waste and maximizing output.

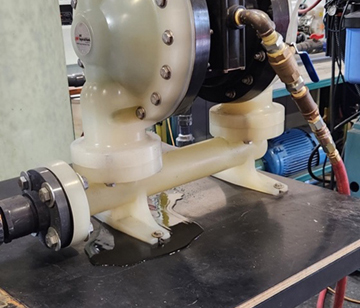

Leaking AODD pump.
Protecting Equipment and Ensuring Consistent Performance
Fluctuating suction pressure creates system-wide vibration, putting pumps and equipment under stress. This leads to premature wear and failure. An AODD pump in a suction lift application is particularly vulnerable, with the shaft and diaphragm at risk. By stabilizing fluid flow and reducing vibration, inlet stabilizers decrease component stress, extending equipment life and reducing maintenance.
The Bottom Line
In conclusion, an inlet (suction) stabilizer is a crucial component in any pumping system. By preventing cavitation, improving pump efficiency, protecting equipment, and ensuring consistent performance, these devices play a vital role in maintaining the reliability and efficiency of the system. Whether you're looking to optimize an existing system or design a new one, Blacoh Industries can assist in the selection and placement of a properly installed inlet stabilizer. Let us help with the understanding of key benefits and considerations of these devices. Our team can help engineers and operators create systems that provide years of trouble-free service while minimizing costs and maximizing performance.
Got questions? Contact us for more info!
