PROVEN PERFORMANCE
- Improves pump performance.
- Protects systems from water hammer.
- Reduces harmful vibrations caused by AODD pumps.
- Extensively tested and rated to 150 psi (10.3 bar).
- Machine welded for consistent and precise finishes.
- Proudly made in the USA.
SYSTEM COMPATIBILITY
- Compatible with most fluids and wide range of metal and plastic system materials.
- Compact and lightweight for easy install and maintenance.
- Presized for 1”, 1.5”, 2”, and 3” AODD pumps.
- NPT, BSP, ANSI Flange, Tri-Clamp connections; Male NPT and BSP connections available on request.
REDUCED AIR CONSUMPTION
- Automatic air control saves on overall system energy costs.

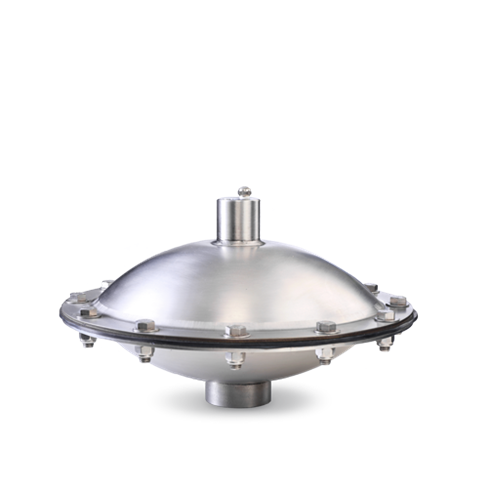

CONSTRUCTION: 316 Stainless Steel Housing | PTFE Diaphragm
PUMP SIZE: 1”, 1.5”, 2”, 3”
CONNECTIONS: NPT, BSP, ANSI Flange, Tri-Clamp; Male NPT and BSP available on request
PRESSURE RATING: up to 150 psi (10.3 bar)
AIR CONTROL: Automatic
CERTIFICATIONS & TESTING: ATEX available
| PUMP SIZE |
MODEL NUMBER |
INLET TYPE |
SPARE KIT |
1”
(25mm)
|
AOD-10-NPT
AOD-10-BSP
AOD-10-FLG
AOD-10-TC
AOD-10-TCP
|
NPT
BSP
150# Flange
Tri-clamp
30RA Polish Tri-clamp
|
AOD-10-100
|
1.5”
(38mm)
|
AOD-15-NPT
AOD-15-BSP
AOD-15-FLG
AOD-15-TC
AOD-15-TCP
|
NPT
BSP
150# Flange
Tri-clamp
30RA Polish Tri-clamp
|
AOD-15-100
|
2.0”
(51mm)
|
AOD-20-NPT
AOD-20-BSP
AOD-20-FLG
AOD-20-TC
AOD-20-TCP
|
NPT
BSP
150# Flange
Tri-clamp
30RA Polish Tri-clamp
|
AOD-20-100
|
3.0”
(51mm)
|
AOD-30-NPT
AOD-30-BSP
AOD-30-FLG
AOD-30-TC
AOD-30-TCP
|
NPT
BSP
150# Flange
Tri-clamp
30RA Polish Tri-clamp
|
AOD-30-100
|
