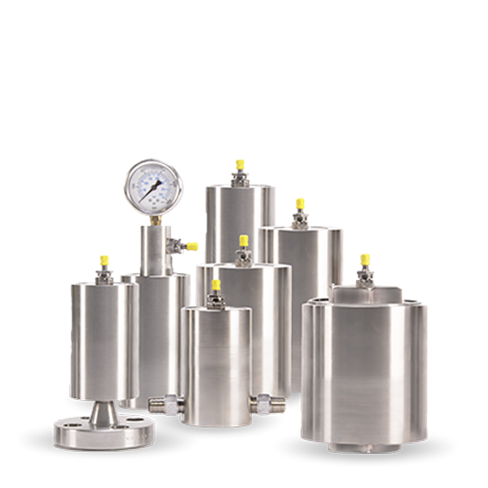

SENTRY™ XP Series
High Pressure Pulsation Dampeners

Engineered to deliver high performance and reliability with 316L Stainless Steel housings and ACME threaded caps. Pressure ratings range from 2,000 to 15,000 psi, with a variety of bladder and inlet options. Blacoh's exclusive flow-through inlet design ensures exceptionally smooth pressure and flow. ATEX, CRN, and ASME certifications available.

Configure Quote

EXTREME PULSATION DAMPENING

  • Compatible with virtually all chemicals and solvents.
  • Able to withstand high temperature applications.
  • Corrosion resistant 316L stainless steel solid shell housings with zero clearance ACME threaded caps.
  • Wide range of volumes, sizes, and inlet types for a variety of high pressure applications.
  • Cost effective construction to keep costs low when expensive alloys are required.
  • Ideally suited for metering and dosing applications typical in oil and gas industry.
  • Exclusive flow-through inlet design removes both hydraulic and acoustic pulses for exceptionally smooth pressure and flow; residual pulsation reduced to <1%.
  • Proudly made in the USA.

FLOW THROUGH MODEL

The SENTRY XPH Flow Through models are engineered to remove high frequency pulses greater than 15 Hz, as well as low frequency pulses. This unique flow through design allows the XPH model to effectively remove both hydraulic pulses and acoustic pulses for exceptionally smooth pressure and flow. With a properly sized XPH dampener, residual pulsation of less than 1% can be achieved.

8IN3, 12IN3, 24IN3

HOUSING MATERIALS: Alloy 20, Hastelloy C, Stainless Steel
BLADDER MATERIALS: Buna-N, EPDM, PTFE, Viton
INLET SIZES: 0.5" (15mm)
INLET TYPES: FNPT, BSP, ANSI Flange, FNPT Flow Through, Autoclave
PRESSURE RATINGS: 2000 to 15000 psi (137.8 to 1034.2 bar)
CERTIFICATIONS & TESTING: ATEX, CRN, PED, ARRA, 3.1 Cert, Material Cert, Cert of Origin, Hydrostatic, Dye Penetrant, Radiography, PMI, Bolt Tensile, Customer Specified

8IN3, 12IN3, 24IN3 ASME CERTIFIED UNITS

HOUSING MATERIALS: 316L Stainless Steel
BLADDER MATERIALS: PTFE
INLET SIZES: 0.5" (15mm)
INLET TYPES: FNPT, BSP, ANSI Flange, FNPT Flow Through, Autoclave
PRESSURE RATINGS: 4420 psi at 140°F (304.7 bar at 60°C)
CERTIFICATIONS & TESTING: ASME U-stamp to Div VIII, Section I standards

36IN3, 60IN3, 91IN3, 122IN3

HOUSING MATERIALS: Alloy 20, Hastelloy C, Stainless Steel
BLADDER MATERIALS: Buna-N, EPDM, PTFE, Viton
INLET SIZES: 0.75" (20mm), 1" (25mm), 1.5" (40mm), 2" (50mm)
INLET TYPES: FNPT, BSP, ANSI Flange, FNPT Flow Through
PRESSURE RATINGS: 2600 to 8000 psi (179.2 to 551.5 bar)
CERTIFICATIONS & TESTING: ATEX, PED, ARRA, 3.1 Cert, Material Cert, Cert of Origin, Hydrostatic, Dye Penetrant, Radiography, PMI, Bolt Tensile, Customer Specified
