- Wide variety of gauge options with gauge accuracy of +/- 2% or better full deflection
- Models available with no gauge, custom fills, and factory installed instrumentation provided by customer

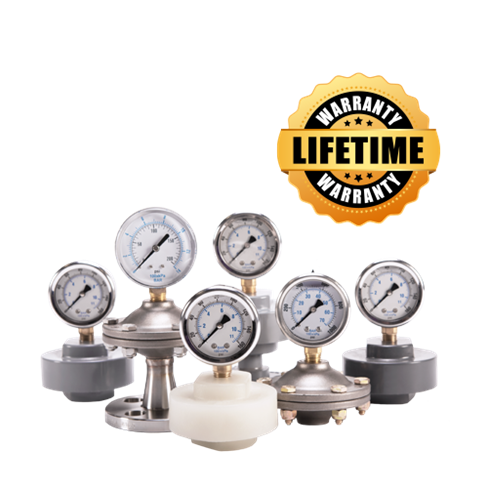

- Housings are unconditionally guaranteed for life not to fail or Blacoh will replace them at no cost
- Easily installed, come in a variety of chemically resistant materials, and work in both pressure and vacuum conditions
- Protect gauges and other system instrumentation from process fluid contamination and corrosion.
- Accurately transfer process pressure without direct contact with process fluids.
- Prevent erratic surges and clogging due to solids in process fluids.
- Protect gauges from freezing and slurries.
- Ensure accuracy and reliability of pressure instrumentation when working with corrosive or solids-laden fluids.
- Reduce costs by replacing expensive gauges with low cost utility gauges.
- Proudly made in the USA
HOUSING MATERIALS: CPVC, Polypropylene, PVC, PVDF, Alloy 20, Stainless Steel
BLADDER MATERIALS: EPDM, PTFE, Viton
INLET SIZES: 0.25" (8mm), 0.5" (15mm), 0.75" (20mm)
INLET TYPES: FNPT, BSP, ANSI Flange, Socket Weld, Tri-clamp, Union
MAX PRESSURE: 200 psi (13.7 bar), PVDF 250 psi (17.2 bar), METAL 1000 psi (68.9 bar)
CERTIFICATIONS & TESTING: NSF, ARRA, 3.1 Cert, Cert of Origin
MODEL NUMBER FORMAT
Example model number:
| Series |
Wetted/Nonwetted |
| CPVC |
CPVC |
| PP |
Polypropylene |
| PVC |
PVC |
| PVDF |
PVDF |
| A20 |
Alloy 20 |
| SS |
Stainless Steel |
