SENTINEL™ Back Pressure Valves and Pressure Relief Valves

Improve Flow. Extend Service Life.
Eliminate Valve Chatter.

Redesigned from the inside out, Blacoh’s patented Back Pressure Valves and Pressure Relief Valves feature unique flow stabilization technology to deliver improved flow, extend valve service life, and eliminate dreaded valve chatter.
US Patent 11,194,352


REQUEST QUOTE
Back Pressure & Pressure Relief Valves
valves

No More Chatter

Blacoh engineers solved the problem of valve chatter with a better design. Most back pressure valves are based on a pressure relief design where the valve is normally closed. When a set pressure point is reached, the valve opens quickly with maximum flow to relieve pressure. This action doesn’t work well for back pressure valves that need to flow continuously to hold pressure upstream. When the valve opens quickly, pressure upstream drops rapidly and the valve slams closed. The sudden stop in flow causes a pressure spike that forces the valve open again. In a back pressure valve application, this cycle occurs many times per second, creating a loud, chattering valve with inferior performance and a shorter service life. Blacoh’s patented valves with flow stabilization technology meter flow when the valve opens to minimize the pressure drop that initiates this cycle. The result is a valve that doesn’t chatter, performs better and lasts longer.

Advantages

Unique flow stabilization technology improves flow, extends service life, and eliminates valve chatter.

Internal swiveling spring seat ensures spring force is applied evenly over the diaphragm for more consistent and complete valve closure.

Both plastic and metal valves feature a separate ring attachment for more uniform clamping load and improved seal performance.

Threaded connections on plastic valves eliminate the need for metal fasteners that can corrode.

FLOW CHARTS

Sizes and Materials

Sizes from 0.25” up to 2” with multiple port options.

Offered in PVC, Polypropylene, CPVC, PVDF, and 316L Stainless Steel with additional materials available on request.

PTFE diaphragms with EPDM and Viton optional on Pressure Relief Valves.

Spring pressures 5-50 psi, 5-150 psi, 5-250 psi and 50-350 psi.

NPT, BSP, socket weld, union and flange inlet options.

PRODUCT FLYER

Back Pressure Valves

Back pressure valves are designed to enhance pumping system performance by applying a continuous back pressure to the pump, while also acting as an anti-syphon valve.

Diaphragm back pressure valves apply positive discharge pressure to a metering pump system to improve the consistency of dosage rates by shielding the pump from fluctuating downstream pressure. The diaphragm is held against the valve seat by an internal spring. When the preset pressure is exceeded, the diaphragm is forced up and system fluid flows through the valve to the injection point.

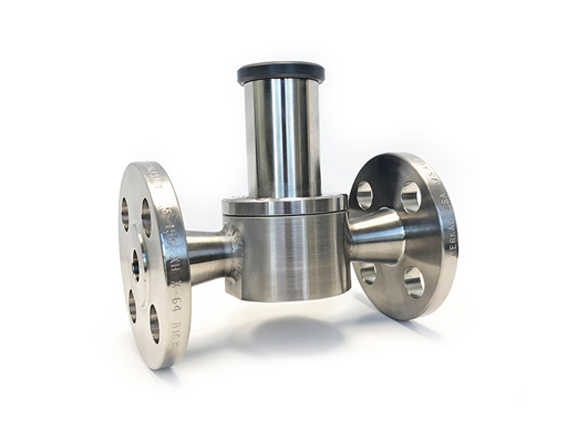

valves

Pressure Relief Valves

Pressure relief valves are designed to protect pumping systems from over pressure damage caused by defective equipment or blockage in the pump system line.

Diaphragm pressure relief valves operate when the pressure in the pumping system exceeds the preset pressure of the valve. The diaphragm is held against the valve seat by an internal spring. When the preset pressure is exceeded, the diaphragm is forced up and the system fluid flows out of the relief port, back to the system fluid tank or to the suction side of the pump.

Models

Back Pressure Valves
Pressure Relief Valves

Flow at 150 PSI pressure drop across valve:

Size
Part #
Pulsating US GPH
Continuous US GPM
Part #
Pulsating US GPH
Continuous US GPM
1/4”
BP-025-_-T
240
12
PR-025-_-*
560
28
3/8"
BP-038-_-T
260
13
PR-038-_-*
620
31
1/2"
BP-049-_-T
288
14
PR-049-_-*
660
33
1/2"
BP-050-_-T
600
30
PR-050-_-*
1240
62
3/4”
BP-075-_-T
640
32
PR-075-_-*
1260
63
1”
BP-100-_-T
710
36
PR-100-_-*
1300
65
1 1/2”
BP-150-_-T
1500
75
PR-150-_-*
3000
150
2"
BP-200-_-T
2000
100
PR-200-_-*
4300
215
_ Body Material
PVC (PVC), Polypropylene (PP), CPVC (CPVC), PVDF (PVDF), 316L Stainless Steel (SS), additional materials may be available on request
* Diaphragm
PTFE (T)
EPDM (E), Viton (V) option on Pressure Relief Valves
Inlet Type
NPT, Socket Weld (SW), BSP (BSP), Flange (F), Union (U)
150# flange, 300# flange standard on 50-350 psi high pressure valves
Configuration
Back Pressure Valves 2 Port 180° (BP), 2 Port 90° (BP90)
Pressure Relief Valves 3 Port (PR), 2 Port 180° (PR2P), 2 Port 90° (PR90)
Spring Pressure
5-150 psi
5-50 psi (L), 5-250 psi valves up to 1” (M), 50-350 psi metal valves (H)
Valve Top
PVC, 316L Stainless Steel standard on 50-350 psi high pressure valves
CPVC (CPVC), 316L Stainless Steel (SS) available on request

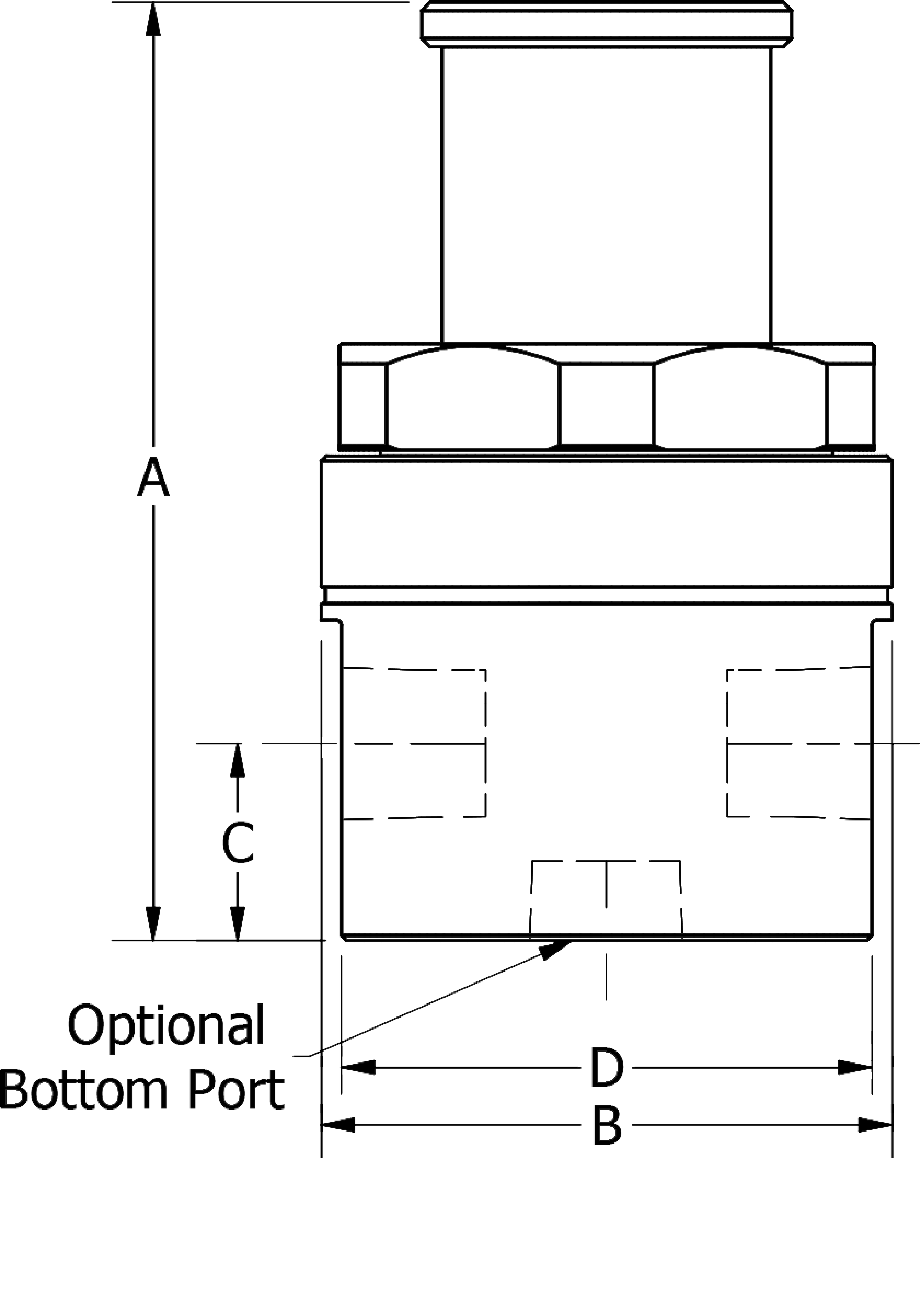

Dimensional Drawing

valves technical dimensions diagram
Valves Dimensions
2 Port 180°
3 Port, 2 Port 90°
Size (NPT)
B Dia
D Flat
A
C
A
C
Mini 1/4 to 1/2"
2.47"
2.30"
4.24"
0.85"
4.49"
1.09"
1/2 to 1"
3.47"
3.22"
5.47"
1.00"
5.72"
1.20"
1 1/2"
4.47"
3.92"
8.07"
1.38"
2"
5.49"
4.88"
9.76"
1.75"

The All-in-One Smart Choice.

SENTINEL™ Hybrid Combination Dampener & Back Pressure Valve

Blacoh’s patented Hybrid Valve™ combines the steady flow control of a pulsation dampener with the regulation of a back pressure valve in a single unit that outperforms systems using a pulsation dampener in series with a back pressure valve. This simple and efficient design has a smaller footprint that is ideal for today’s more compact skid designs, fewer connections and leak points, and flow stabilization technology to eliminate valve chatter.
US Patent 10,353,409


Hybrid Valve™
