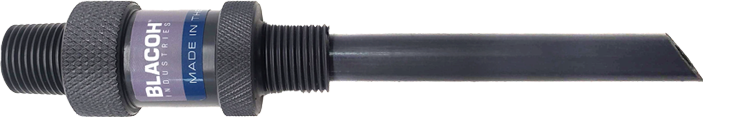

SENTINEL™ Injection Quills
Deliver Chemicals into Process Pipelines Safely and Efficiently

SENTINEL Injection Quills are designed to safely and efficiently disperse chemicals into process pipelines. Chemicals are injected directly and evenly into the center of the process flow away from the pipe wall and where flow velocity is highest. This direct injection into the center of the flow avoids chemical contact with pipe walls and ensures more even mixing with the process fluid. The integral spring-loaded check disk prevents backflow of pressurized process fluid into the chemical feed when the pump is off or the chemical feed is disconnected.

Quote Buy Now

Injection quills are a simple but important component to fluid process systems, especially when mixing comes into play. They provide a safe, effective way to connect a liquid chemical feed to a pipeline or vessel; and convenient chemical delivery directly into the center of the process flow.

Read more about injection quills and how they work on our blog.

  • Spring-loaded check disk prevents process fluid backflow into the chemical feed and stops chemical flow when the pump is shut down.
  • CNC precision machined components.
  • Custom quill lengths and connections available on request.
  • Proudly made in the USA

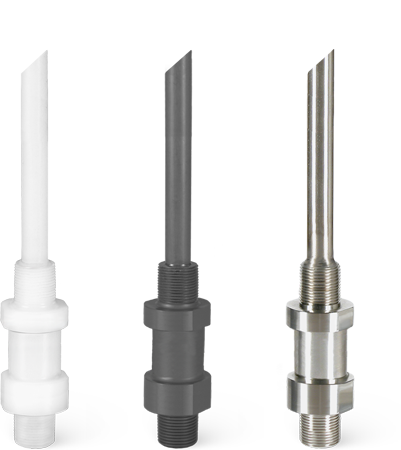

MATERIALS: PVC, PVDF, Polypropylene, 316L Stainless Steel
O-RINGS: EPDM, Viton
CONNECTION SIZES: 0.5" (15mm), 0.75" (20mm), 1" (25mm)
CONNECTION TYPES: NPT
LENGTHS: Standard 4” quills. Custom quill lengths available in 0.25” increments up to 16” on plastic models or 24” on metal models (longer quill lengths on metal models may be available on request).

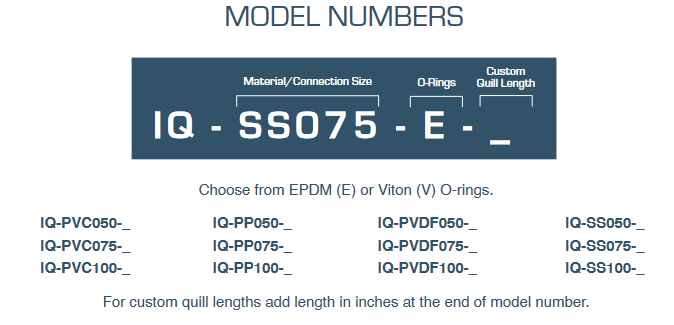

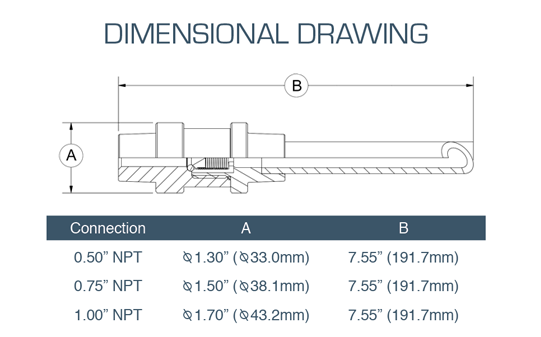

DIMENSIONS

Connection A B
0.50" NPT Ø 1.30" (Ø 33.0 mm) Ø 7.55" (Ø 191.7 mm)
0.75" NPT Ø 1.50" (Ø 38.1 mm) Ø 7.55" (Ø 191.7 mm)
1.00" NPT Ø 1.70" (Ø 43.2 mm) Ø 7.55" (Ø 191.7 mm)
